基于BoW和SVM的图片分类

本文最后更新于 2025-12-11 20:28:51

原文发表在公众号

环境

Visual Studio 2022

OpenCV 4.5.2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
#define USE_OPENCV

#ifdef USE_OPENCV

#ifndef CV
#define CV

#include <opencv2/opencv.hpp>

#define CV_VERSION_ID CVAUX_STR(CV_MAJOR_VERSION) CVAUX_STR(CV_MINOR_VERSION) CVAUX_STR(CV_SUBMINOR_VERSION)

#ifdef _DEBUG
#include <opencv2/core/utils/logger.hpp>
#define cvLIB(name) "opencv_" name CV_VERSION_ID "d"
#else
#define cvLIB(name) "opencv_" name CV_VERSION_ID
#endif

#pragma comment(lib, cvLIB("world"))

#endif // !CV


#endif // USE_OPENCV

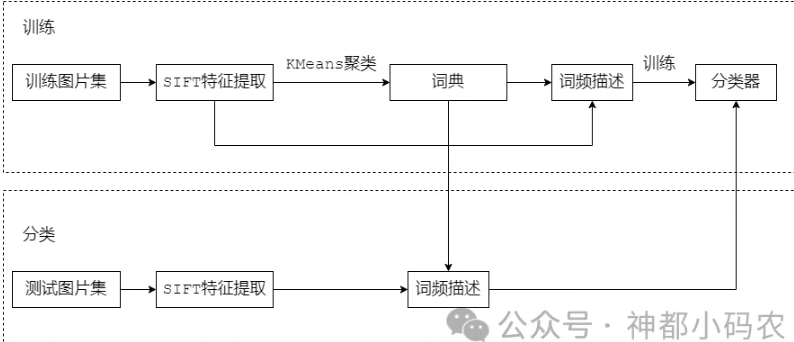

训练流程

提取图片SIFT特征信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
void GetFeatureSet(std::string dir,
                   std::string file_format,
                   size_t train_count,
                   std::vector<SIFTFeature>& feature_set,
                   std::vector<int>& feature_labels,
                   bool is_train = true)
{
    std::vector<std::vector<std::string>> file_paths;
    GetFile(dir, file_format, file_paths);


    std::vector<std::string> image_paths;
    for (size_t i = 0; i < file_paths.size(); i++)
    {
        if (is_train)
        {
            for (size_t j = 0; j < std::min(file_paths[i].size(), train_count); j++)
            {
                image_paths.push_back(file_paths[i][j]);
                feature_labels.push_back(i);
            }
        }
        else
        {
            for (size_t j = std::min(file_paths[i].size(), train_count); j < std::max(file_paths[i].size(), train_count); j++)
            {
                image_paths.push_back(file_paths[i][j]);
                feature_labels.push_back(i);
            }
        }
    }


    cv::Ptr<cv::SIFT> sift = cv::SIFT::create();
    feature_set.resize(image_paths.size());
    parallel_for_(cv::Range(0, image_paths.size()),
                  Paraller_GetImageSIFTFeature(image_paths, sift, feature_set));
}

KMeans聚类获取特征词典

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
cv::Mat GetDic(std::vector<SIFTFeature> train_feature, int k, bool is_write = true)
{
    cv::Mat dic;
    if (is_write)
    {
        cv::BOWKMeansTrainer kmeans_trainer = cv::BOWKMeansTrainer(k);
        for (size_t i = 0; i < train_feature.size(); i++)
        {
            kmeans_trainer.add(train_feature[i].descriptors);
        }

        dic = kmeans_trainer.cluster();

        cv::FileStorage fs("./vocabulary - [k = " + std::to_string(k) + "].yml", cv::FileStorage::WRITE);
        fs << "dic" << dic;
        fs.release();
    }
    else
    {
        cv::FileStorage fs("./vocabulary - [k = " + std::to_string(k) + "].yml", cv::FileStorage::READ);
        fs["dic"] >> dic;
        fs.release();
    }
    return dic;
}

统计词频描述

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
std::vector<cv::Mat> FeatureToSVMSet(cv::Mat dic,
                                     std::string bow_path,
                                     std::vector<SIFTFeature> feature_set)
{
    std::vector<cv::Mat> bow_list(feature_set.size());

    if (FileHelper::GetInstance().IsFileExists(bow_path))
    {
        cv::FileStorage fs(bow_path, cv::FileStorage::READ);
        fs["bow_list"] >> bow_list;
        fs.release();

        return bow_list;
    }


    parallel_for_(cv::Range(0, feature_set.size()),
                  Paraller_FeatureToSVMSet(dic, feature_set, bow_list));

    cv::FileStorage fs(bow_path, cv::FileStorage::WRITE);
    fs << "bow_list" << bow_list;
    fs.release();

    return bow_list;
}

训练分类器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
void SVMTrain(std::vector<cv::Mat>train_set, std::vector<int> train_labels)
{
    cv::Mat train_mat;
    cv::vconcat(train_set, train_mat);
    cv::Mat label(train_labels);

    cv::Ptr<cv::ml::SVM> svm = cv::ml::SVM::create();

    svm->setType(cv::ml::SVM::C_SVC);
    svm->setKernel(cv::ml::SVM::LINEAR);
    svm->setTermCriteria(cv::TermCriteria(cv::TermCriteria::MAX_ITER, 100, 1e-6));

    svm->train(train_mat, cv::ml::ROW_SAMPLE, label);

    svm->save("./train_data.yml");
}

分类流程

提取图片SIFT特征信息

统计词频描述

预测分类

1
2
3
4
5
6
7
cv::Ptr<cv::ml::SVM> svm = SVMHelper::GetInstance().GetSVMTrain();
std::vector<int> predictions;
for (size_t i = 0; i < test_bow_list.size(); i++)
{
    predictions.push_back(svm->predict(test_bow_list[i]));
}
print_log("SVM Predict Done!");

绘制混淆矩阵

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
auto calculateConfusionMatrix = [](std::vector<int> groundTruth, std::vector<int> predictions, int numClasses) -> std::vector<std::vector<int>>
{
    std::vector<std::vector<int>> confusionMatrix(numClasses, std::vector<int>(numClasses, 0));
    for (size_t i = 0; i < groundTruth.size(); i++)
    {
        int trueClass = groundTruth[i];
        int predictedClass = predictions[i];
        confusionMatrix[trueClass][predictedClass]++;
    }
    return confusionMatrix;
};

std::vector<std::vector<int>> confusionMatrix = calculateConfusionMatrix(test_label, predictions, 15);
{
    cv::FileStorage fs("./confusionMatrix.yml", cv::FileStorage::WRITE);
    fs << "confusionMatrix" << confusionMatrix;
    fs.release();
}
print_log("ConfusionMatrix Done!");

结果

confusionMatrix:

  • [ 28, 1, 6, 6, 7, 2, 1, 1, 2, 3, 0, 1, 3, 3, 2 ]
  • [ 0, 81, 1, 0, 3, 0, 3, 0, 0, 1, 0, 1, 0, 1, 0 ]
  • [ 11, 4, 56, 5, 10, 1, 1, 4, 14, 8, 1, 20, 9, 7, 10 ]
  • [ 3, 0, 2, 34, 5, 0, 0, 0, 3, 0, 0, 2, 0, 9, 2 ]
  • [ 32, 3, 10, 27, 44, 1, 0, 0, 3, 0, 0, 2, 2, 8, 7 ]
  • [ 3, 0, 1, 0, 0, 154, 0, 15, 0, 14, 16, 1, 6, 0, 0 ]
  • [ 0, 0, 0, 0, 0, 0, 168, 0, 0, 8, 1, 1, 0, 0, 0 ]
  • [ 1, 2, 7, 1, 0, 24, 1, 59, 5, 1, 3, 3, 3, 0, 0 ]
  • [ 3, 1, 18, 8, 0, 0, 0, 3, 87, 1, 1, 15, 6, 3, 12 ]
  • [ 0, 0, 1, 0, 1, 15, 24, 2, 0, 167, 11, 2, 1, 0, 0 ]
  • [ 2, 1, 4, 0, 0, 50, 29, 9, 0, 57, 105, 0, 2, 0, 1 ]
  • [ 4, 0, 16, 1, 4, 4, 0, 3, 5, 5, 4, 80, 3, 0, 13 ]
  • [ 5, 3, 16, 5, 4, 4, 1, 9, 16, 2, 7, 13, 117, 1, 3 ]
  • [ 8, 1, 2, 13, 8, 0, 0, 0, 2, 0, 0, 1, 0, 30, 0 ]
  • [ 1, 4, 14, 5, 5, 0, 3, 0, 5, 0, 1, 19, 4, 5, 99 ]
